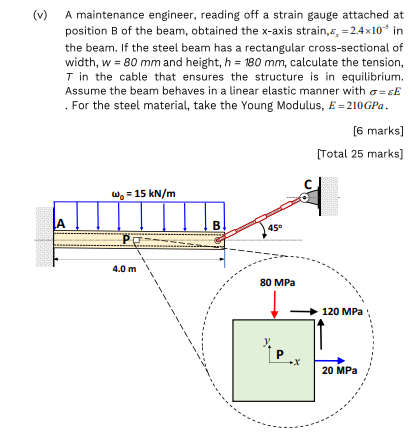

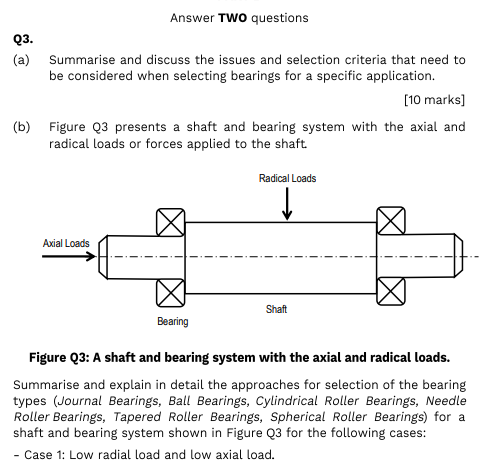

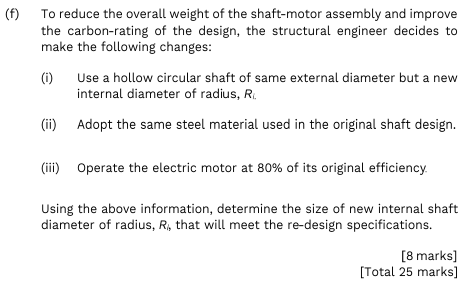

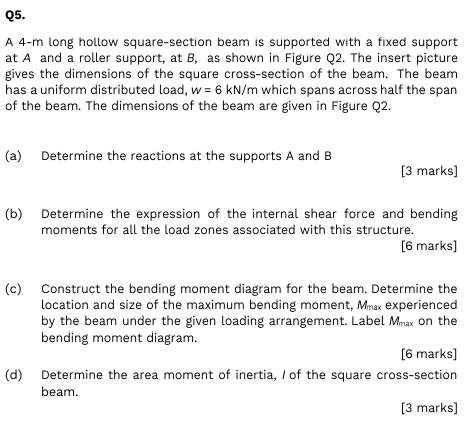

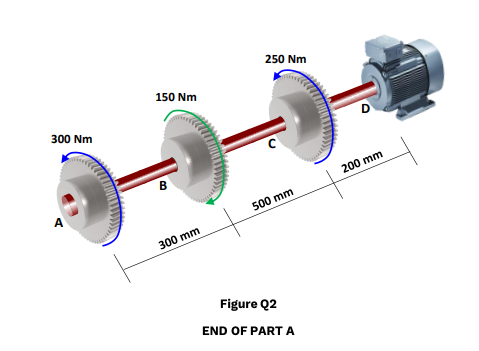

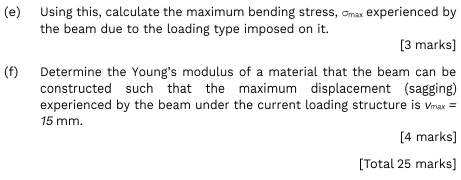

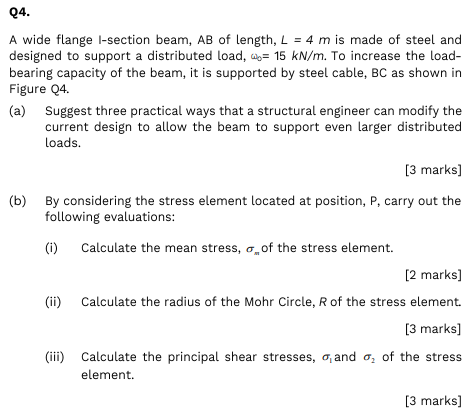

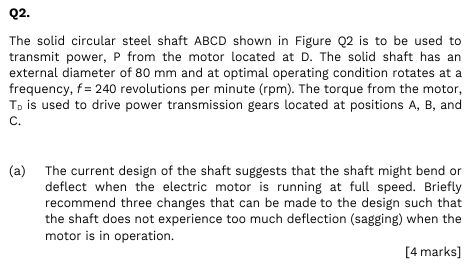

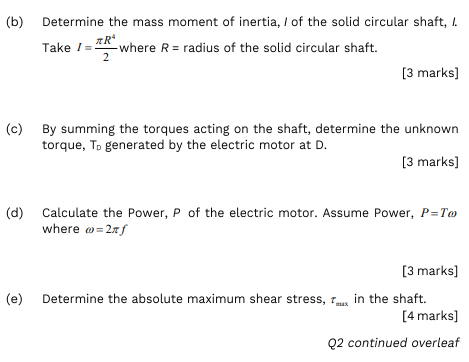

MECH 1070 MECHANICS AND DESIGN OF MACHINE 2021

$35.00

ANSWER(Purchase full paper to get all the solution)

1a)















Recall:















  n3=n1N1N3









Recall:





1b)

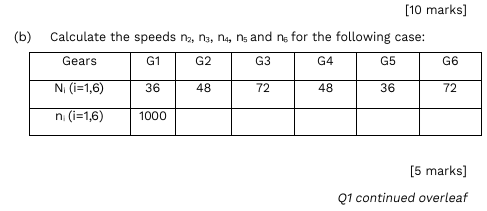

Gears

G1

G2

G3

G4

G5

G6

Ni (i=1,6)

36

48

72

48

36

72

ni (i=1,6)

1000

750

500

500

666.67

333.33



For



n2=1000×36/48

n2=750rpm

For



n3=1000×36/72



 For n4

n4=n3



For n5





For n6

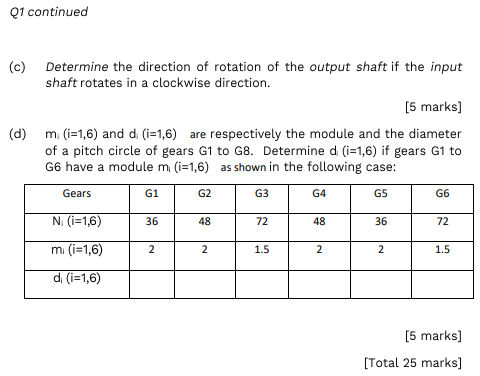

1c)

the direction of rotation of the output shaft is clockwise.

1d)

Gears

G1

G2

G3

G4

G5

G6

Ni (i=1,6)

36

48

72

48

36

72

mi (i=1,6)

2

2

1.5

2

2

1.5

di (i=1,6)

72

96

108

96

72

108



 number of teethN=Diameter of pitch circle (d)Module (m)

d=mN

di=miNi





d2=2(48)=96mm

d3=m3N3

d3=1.5(72)=108mm

d4=m4N4

d4=2(48)=96mm

d5=m5N5

d5=2(36)=72mm



d6=2(72)=108mm
